LAUNCH X431 SmartLink C Heavy Duty 24V Truck 1 An Update Online

LAUNCH X431 SmartLink C Heavy Duty 24V Truck 1 An Update Online
Cu soft Diagzone Car Truck Electrice 2 ani Update 5000 ron

Vehicles Diagnostic Tools work for X-431 PRO3S+ , X431 PRO3 ACE
1 an Update Online

works with the X431 series:
1.X431 Pro3s+
2.X431 X431 V+
3.X431 Pro3 ACE
4. X431 Pro3s+ V5.0
5. X431 .

Features:
Work as a VCI Vehicle Communication Interface
Work as a J2534 PassThru Device

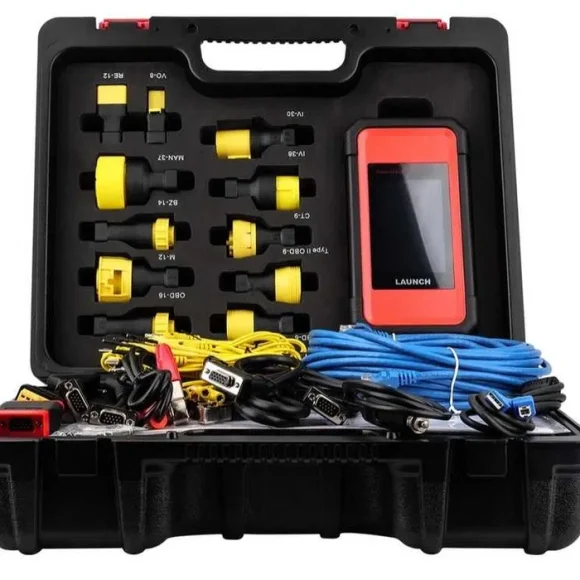

X431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Test & Measurement Tools Code Readers Scan Tools X431 HD Module Works for X431 V+, X431 PRO3+, X431 PRO3 ACE, X-431 PRO3S Series.

Product introduction:

X-431 SmartLink C 2.0 is a heavy-duty vehicle diagnostic module based on Linux system developed by Launch Company. It has dual processors Cortex-A7+Cortex-M7, 8G RAM, 256M storage, and 320*480 resolution. Supports Bluetooth, Wi-Fi, USB and other communication methods, and can be used with X-431 PRO3S and PRO5 and LAUNCH X431 PRO3 ACE series. Supports system-wide fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action testing.

Covers engine diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engines. Supports various types of vehicle software such as trucks, buses, construction machinery, agricultural machinery, trailers, ships, etc.

Product parameters:

CPU: Dual processor Cortex-A7+Cortex-M7
Operating system: Linux
Resolution: 320×480
Power consumption: 6w
Storage: 8GB
Memory: 256M
Working temperature: 0C-50C
Working voltage: 9V DC—36V DC
Dimensions: 200mm×110mm×47mm

LAUNCH X-431 HD SmartLink C 2.0 Module cannot be used alone. It only works with LAUNCH Tablet of X431 V+, X431 PRO3+, X431 PRO3 ACE, X-431 PRO3S Series.
